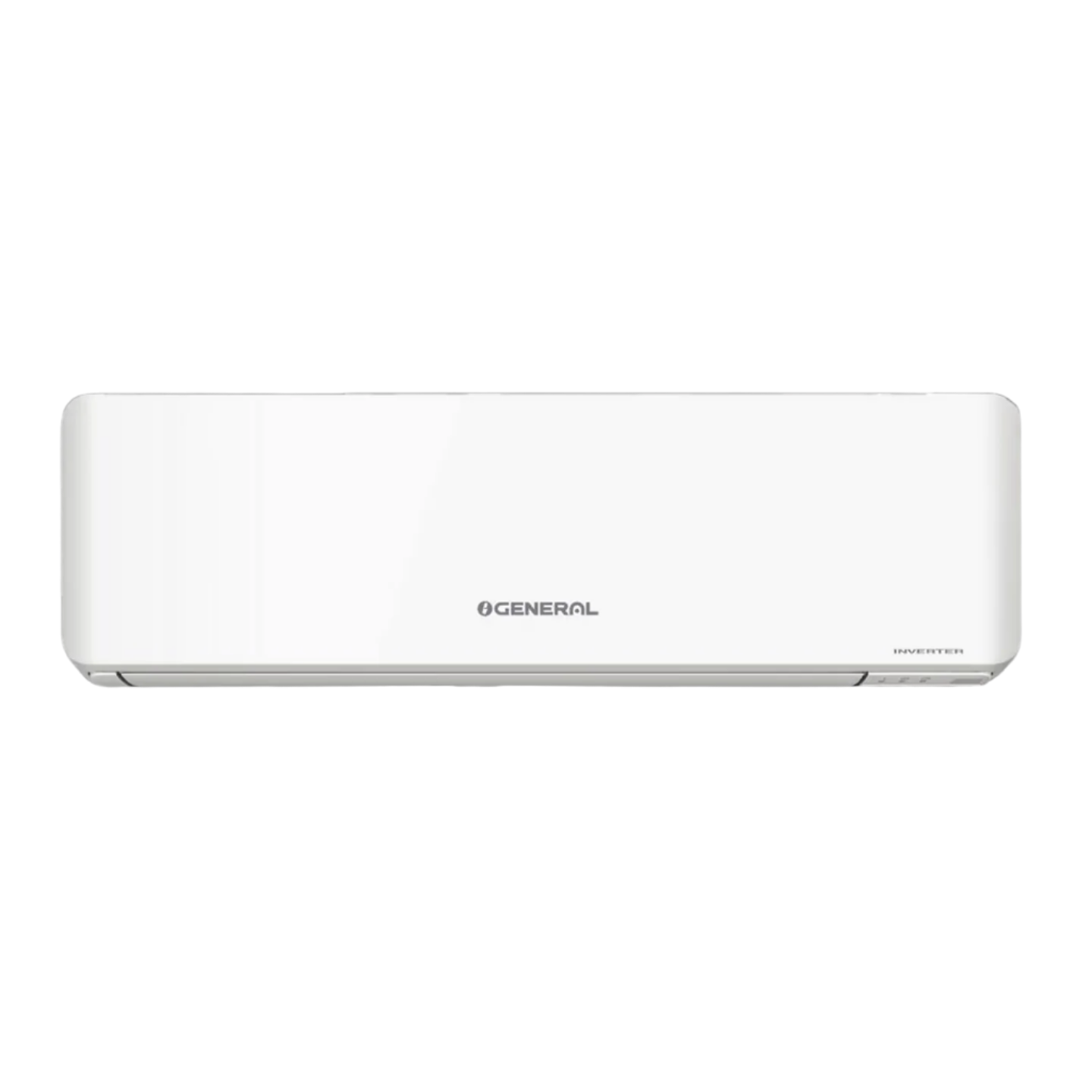

2.0 Ton Inverter Split AC, 3 Star Rating

Copper Condenser

For Rooms up to 250 sqft

Power Consumption

2100Watt

1 Year Comprehensive Warranty, 10 Years Compressor Warranty

Refrigerant

R32

Quiet Operation, Higher Moisture Removal

AIR CONDITIONER CATEGORY

Air Conditioner Type -  SplitAir Conditioner Capacity - 12.0 TonApproximate Coverage Area(Sq.Ft) - 250 Sq. Ft.Approximate Coverage Area(Sq.M) - 20.72 Sq.mInstallation Type - Wall Mount

Air Conditioner Type -  Split

Air Conditioner Capacity - 12.0 Ton

Approximate Coverage Area(Sq.Ft) - 250 Sq. Ft.

Approximate Coverage Area(Sq.M) - 20.72 Sq.m

Installation Type - Wall Mount

MANUFACTURER DETAILS

Brand - O GeneralModel Series - ASGG24CPAA-BModel Number - ASGG24CPAA-B

Brand - O General

Model Series - ASGG24CPAA-B

Model Number - ASGG24CPAA-B

AIR CONDITIONER FEATURES

Air Conditioner Modes - Powerful ModeConvertible Mode - NoAir Flow Volume -1170 CFMInverter Technology - YesCooling Capacity - 24000 BTU/HCooling-7040wISEER-4.24*POWER-1285.91WAmbient Temperature (Cooling/Heating) In Degree Celsius - 55Additional Air Conditioner Features - Advanced Hyper Tropical Rotary Compressor - 55 deg | Coanda Airflow Technology (15M) - 18 & 24 | Wide Voltage Range, Slicon Coated PCB & High Voltage Protection (900V - 12/18) | 5 Speed Fan Control, Quiet Operation, Higher Moisture Removal

Air Conditioner Modes - Powerful Mode

Convertible Mode - No

Air Flow Volume -1170 CFM

Inverter Technology - Yes

Cooling Capacity - 24000 BTU/H

Cooling-7040w

ISEER-4.24*

POWER-1285.91W

Ambient Temperature (Cooling/Heating) In Degree Celsius - 55

Additional Air Conditioner Features - Advanced Hyper Tropical Rotary Compressor - 55 deg | Coanda Airflow Technology (15M) - 18 & 24 | Wide Voltage Range, Slicon Coated PCB & High Voltage Protection (900V - 12/18) | 5 Speed Fan Control, Quiet Operation, Higher Moisture Removal

AIR CONDITIONER FUNCTIONS

Compressor Type - Advance Hyper Tropical RotaryRefrigerant Type - R32Noise Level (Indoor Unit) - 30dBNoise Level (Outdoor Unit) - 50dB

Compressor Type - Advance Hyper Tropical Rotary

Refrigerant Type - R32

Noise Level (Indoor Unit) - 30dB

Noise Level (Outdoor Unit) - 50dB

AIR CONDITIONER PHYSICAL ATTRIBUTES

Connecting Pipe Type - CopperConnecting Pipe Length - 20 mCondenser Coil Type - CopperLouvers Swing Type - Up/Down

Connecting Pipe Type - Copper

Connecting Pipe Length - 20 m

Condenser Coil Type - Copper

Louvers Swing Type - Up/Down

ENERGY STANDARDS

Energy Efficiency(Star Rating) - 3 Star

Energy Efficiency(Star Rating) - 3 Star

AIR CONDITIONER PLUG DETAILS

Power - 2390WVoltage Rating - 250VFrequency - 50HzPhase - SingleMaximum Operating Temperature - 55 Degree Celsius

Power - 2390W

Voltage Rating - 250V

Frequency - 50Hz

Phase - Single

Maximum Operating Temperature - 55 Degree Celsius

PRODUCT AESTHETICS

Color - WhiteColor Family - White

Color - White

Color Family - White

IN THE BOX

Generic Name - Air ConditionerMain Product - 1 U Indoor Unit & Outdoor UnitAccessories - Remote | Connecting PipeDocuments - Warranty Documents

Generic Name - Air Conditioner

Main Product - 1 U Indoor Unit & Outdoor Unit

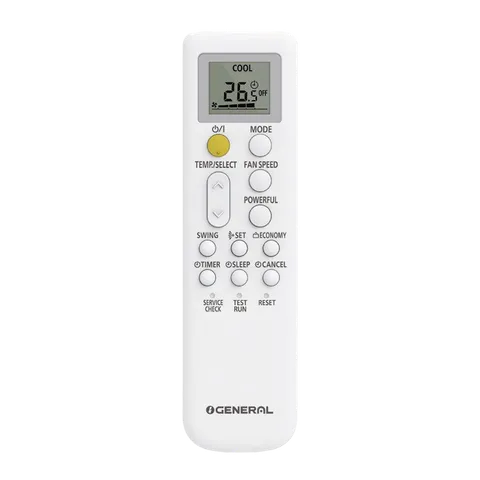

Accessories - Remote | Connecting Pipe

Documents - Warranty Documents

PRODUCT DIMENSIONS OUTDOOR UNITDimensions in CM (W x D x H)79.90 x 29.00 x 63.20Dimensions in Inches (W x D x H)31.45 x 11.41 x 24.88Outdoor Unit Weight33 KgPACKAGED DIMENSIONSPackage Dimensions in Inches (W x D x H)42.44 x 13.62 x 12.67Package Weight16 KgPackage Dimensions in cm (W x D x H)10.78 x 34.60 x 32.20PRODUCT PACKAGED DIMENSIONS OUTDOOR UNITOutdoor Unit Package Dimensions in CM (W x D x H)94.00 x 37.50 x 69.20Dimensions in Inches (W x D x H)37.00 x 14.76 x 27.24Outdoor Unit Package Weight39 Kg

PRODUCT DIMENSIONS OUTDOOR UNIT

Dimensions in CM (W x D x H)

79.90 x 29.00 x 63.20

Dimensions in Inches (W x D x H)

31.45 x 11.41 x 24.88

Outdoor Unit Weight

PACKAGED DIMENSIONS

Package Dimensions in Inches (W x D x H)

42.44 x 13.62 x 12.67

Package Weight

Package Dimensions in cm (W x D x H)

10.78 x 34.60 x 32.20

PRODUCT PACKAGED DIMENSIONS OUTDOOR UNIT

Outdoor Unit Package Dimensions in CM (W x D x H)

94.00 x 37.50 x 69.20

Dimensions in Inches (W x D x H)

37.00 x 14.76 x 27.24

Outdoor Unit Package Weight

AFTER SALES & SERVICES

Standard Warranty Period - 12 MonthsAdditional Warranties - 5 Year Warranty on PCB| 10 Years Warranty on CompressorWarranty Type - Onsite

Standard Warranty Period - 12 Months

Additional Warranties - 5 Year Warranty on PCB| 10 Years Warranty on Compressor

Warranty Type - Onsite
